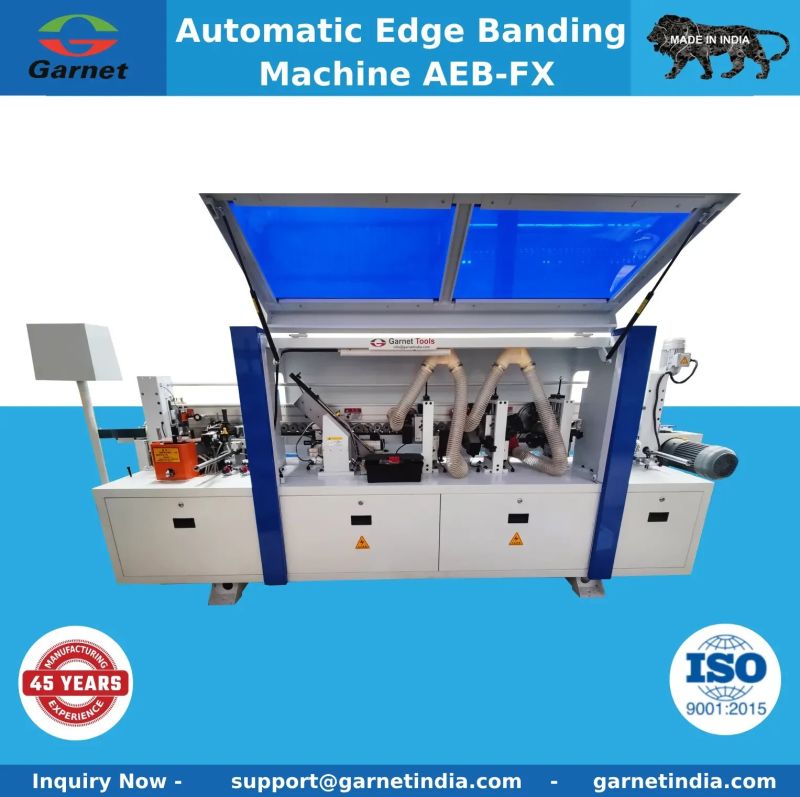

Automatic Edge Banding Machine
Specifications
| Usage/Application | Automatic Edge Banding Machine |
| Model Name/Number | EB-Fx 3/4/5/6/7/8/9/10 |
| Machine Type | Automatic |
| Weight | 300-2000 |
| Air Pressure | 4-7 Bar |
| Feeding Speed | 5-15 meter/min |
| Glue Tank Capacity | 1-3 liter |
| Power Supply | 415/380v 50 hz |
| Trimming | Rough or Fine |
| Buffing Motor | Yes, 2 Nos. |
| Edges Thickness | 0.4-2/3mm |
| Panel Thickness | 10-50mm (Customisation) |
| Workpiece Thickness | 10-50mm |
| Brand | Garnet |
| Production Capacity | 5-15 meter/min |
Additional Information
| Min. Order Quantity | 1 Piece(s) |
| Delivery Time | 40-70 days |
| Packaging Details | As per customer requirement |
Functions of an Edge Bander Machine are :
- Gluing
- Rough trimming ( Required if thicker tapes are used regularly)
- Fine Trimming
- Scraping
- Buffing
- End Cutting
- Pre-Milling (Custom applications)
- Corner rounding (For thick edge bands)
- Releasing and Cleaning Agents
- Board Preheating
- And machine can be customised as per customer requirement.
- We would be happy to understand the details of your requirement and suggest a machine for the same.
