Panel Processing Machines

Leading Manufacturers, Exporters, Wholesaler and Retailer of 1 Head Multi Boring Machine, 2Head Multi Boring Machine, 3 Head Multi Boring Machine, 3Head Multi Boring Machine, Board and Panel Coating Machine, Board Panel Planning Shaping Machine, CNC Machining Centre, CNC Router Machine, Heavy Duty Cold Press Machine, High Speed Spindle Moulder, Laser Marking and Cutting Machine, Manual Edge Banding Machine and Mini CNC Router from Dewas.

Business Type Manufacturer, Exporter, Supplier, Retailer
Model GT-MB-1
Overall size 2000*1300*1300mm
Motor Power 1.5KW
Max. Drilling Depth 55mm
Rotational Speed 2800 RPM
Air Working Pressure 0.6-0.8Mpa/Bar

Multi Boring Machine is used to make holes or drills on the panel for knock down or easy assembly of hardware.
Various types of holes or drills done are hinge hardware hole, Minifix hardware holes and related holes for dowel and related application
Multi Boring machine with one head can either do vertical or horizontal drills.
Multibore machine has a rotating head which can turn to horizontal or vertical axis for drilling. Machine uses pnuematic power for holding of the workpiece.
Scales and marking are provided for guiding and setting of panels.
Machine uses multi head drilling facility to drill 21 hole positions and thus its easy to set in place of shifting hole positions.

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Model GT-MB-2
Overall size 2600*2500*1620mm
Motor Power 1.5 x 2 = 3KW
Max. Drilling Depth 55mm
Installation dia. Of drill bit shaft 10mm
Rotational Speed: 2900 RPM
Shipping Size 2600x1080x1620mm
Max. Drilling Diameter 30mm
No. of Boring Heads: 21 nos. x 2 Heads

Click to view more

Multi Boring Machine, 2head is used to make holes or drills on the panel for knock down or easy assembly of hardware. This machine can drill one set of horizontal and one set of vertical hole in one time operation.
The types of holes or drills done are hinge hardware hole, Minifix hardware holes and related holes for dowel and related application.
Multi Boring machine, double head with one head can either do vertical or horizontal drills and the secondary head is aligned for vertical axis.
Multibore machine, double head has one rotating head which can turn to horizontal or vertical axis for drilling. Machine uses pnuematic power for holding of the workpiece.
Scales and marking are provided for guiding and setting of panels.
Machine uses multi head drilling facility to drill 21 hole positions and thus its easy to set in place of shifting hole positions.

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Country of Origin India
Usage Making Holes Or Drills On Panels For Knock Down Or Easy Assembly Of Hardware
Type Multi Boring Machine
Number Of Heads 3
Types Of Holes Hinge Hardware Hole, Minifix Hardware Holes, Dowel Holes, Related Application Holes
Head Configuration One Head For Horizontal Drilling, One Head For Vertical Drilling, One Rotating Head For Switching Between Horizontal And Vertical Drilling
Power Source Pneumatic

Multi Boring Machine, 2head is used to make holes or drills on the panel for knock down or easy assembly of hardware. This machine can drill one set of horizontal and one set of vertical hole in one time operation. The types of holes or drills done are hinge hardware hole, Minifix hardware holes and related holes for dowel and related application.

Multi Boring machine, double head with one head can either do vertical or horizontal drills and the secondary head is aligned for vertical axis.

Multibore machine, double head has one rotating head which can turn to horizontal or vertical axis for drilling. Machine uses pnuematic power for holding of the workpiece.



Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Usage Making Holes Or Drills On Panels For Knock Down Or Easy Assembly Of Hardware
Type Multi Boring Machine
Material Metal
Color Grey
Operation Drills One Set Of Horizontal And One Set Of Vertical Hole In One Time Operation
Head Type Double Head With One Head For Vertical Or Horizontal Drills, Secondary Head For Vertical Axis
Power Source Pneumatic Power For Holding Workpiece

Multi Boring Machine, 2head is used to make holes or drills on the panel for knock down or easy assembly of hardware. This machine can drill one set of horizontal and one set of vertical hole in one time operation. The types of holes or drills done are hinge hardware hole, Minifix hardware holes and related holes for dowel and related application.

Multi Boring machine, double head with one head can either do vertical or horizontal drills and the secondary head is aligned for vertical axis. Multibore machine, double head has one rotating head which can turn to horizontal or vertical axis for drilling. Machine uses pnuematic power for holding of the workpiece.

Scales and marking are provided for guiding and setting of panels.
Machine uses multi head drilling facility to drill 21 hole positions and thus its easy to set in place of shifting hole positions.

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Country of Origin India
Usage To apply coats of prime, sealer and various coats on the panels or boards,Smooth And Efficient Wood Panel Finishing
Power 2-7.5HP
Type Panel Coating Machine
Material Durable Materials Suitable For Woodworking Industries
Panel Coating Machine\\n

Get a high-performance Board/Panel Coating Machine for smooth and efficient wood panel finishing. Durable, precise, and ideal for woodworking industries. Order now in India!

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Type Panel Planning Shaping Machine
Rated Power 7.5-45HP
Application To Plan And Shape The Strips, Panels, Tiles And Boards, Ideal For Woodworking Industries
Country of Origin India

Panel Planning Shaping Machine

Panel Planning Shaping Machine –  Get a high-performance Board/Panel Planning cum Shaping Machine for precise finishing and shaping. Durable, efficient, and ideal for woodworking industries. Order now in India!

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Application Processing Heavy And Complicated Jobs,Making Complex Models,Structural Parts,Heavy And Hard-to-machine Shapes,Suitable For Large Product And Complex Shape Makers,Used By Artists,Designers,Model Creators,And 3D Art Makers For Aerospace,Insulation
Color Various
Country of Origin India
Material Metal
Functions 3/4/5 Axis Machining, Automatic Tool Changing, Multiple Milling Heads, Vacuum Or Large Bed Machines
Features Can Work In 2D And 3D, Can Have More Functions As Per Client Requirements

Heavy Duty, With or WithoutATC

CNC Machining Centre is a heavy and complicated job processing machine. This machine can make complex models, structural parts, heavy and hard to machine shapes using various functions from 3/4/5 axis machining, automatic tool changing, multiple milling heads, Vacuum or large bed machines.
These machines are suitable for large product and complex shape and profile makers.
Artists, designers, model creators and 3D art makers regularly use this machine to make various products from aerospace, insulation, mould and model manufacturers use similar machines.
Imagination is the limit of the machine and the features and the machine can work in 2D and 3D and even more functions as per client requirements.

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Driven Type Electric
Color Grey, Various
Material Metal And Plastic
Application Woodworking,Metalworking,Engraving
Packaging Standard Packaging
Size Various Sizes Available
Power Source Electric
Working Area 1300x2500mm
Spindle Power: 6Kw
Working Height 150mm

Click to view more

CNC Router Machine | CNC Router Machine Manufacturer

CNC Router Machine is used to carve, cut or shape boards, strips, panels and blocks of Wood, WPC, MDF, Plywood, Acrylic or similar material to make shapes, designs, profiles and other usage. Artists, designers, model creators and 3D arts can be processed using this machine. The machine can work in 2D and 3D and even more functions as per client requirements. Machines use a High Speed Spindle that can have power of 3/4.5/5/6/7.5/9KW or more Power as per application CNC Machining Centre can be deisnged for various applications, working loads and usage. CNC Router Machine can be used by artists, designers and panel board users for cutting, engraving, carving, marking and various other usage. The CNC Carving Machine requires proper drawing and tool to provide finish as per requirement.

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Material Stainless Steel
Color Silver
Packaging Cardboard Box
Application Commercial
Power Source Electric
Capacity High
Dimensions Standard
Weight Heavy
Brand Name Garnet Tools

Click to view more


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Type Woodworking Machine
Material Steel And Cast Iron
Color Grey
Packaging Standard Packaging
Application Wood Shaping And Cutting
Power Source Electric
Speed High Speed
Introducing the High Speed Spindle Moulder, a powerful woodworking machine in sleek grey color. Crafted from durable steel and cast iron, this electric-powered moulder is designed for precision wood shaping and cutting tasks. With high-speed capabilities, it ensures efficient performance. Packaged in standard packaging, this moulder is a must-have for woodworking enthusiasts.
Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Material Metal, Plastic, Wood
Packaging Type Usually Comes In A Wooden Crate For Protection During Shipping
Usage Industrial Use For Marking And Cutting Various Materials
Power Source Electric
Size Varies Based On The Model, Typically Medium To Large Size
Speciality High Precision Laser Technology, Computer-controlled Operation
Introducing our Laser Marking and Cutting Machine, designed for industrial use on metal materials. This electric-powered machine offers high precision laser technology for accurate marking and cutting. Usually packaged in a wooden crate for secure shipping. Available in various sizes to suit different needs and applications.
Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Brand Name Garnet
Power 1-3HP
Automatic Grade Manual
Voltage 220/415/380volts
Weight 150-500kgs
Model Number/Name MEB-507
Phase 1/3phase
Edge Thickness 10-50mm
Edge belt thickness 15-50
Production Capacity 1-5 pieces per month
Product Code Edge-Bander
Delivery Time 10-60 days
Packaging Details As per customer requirement

Click to view more

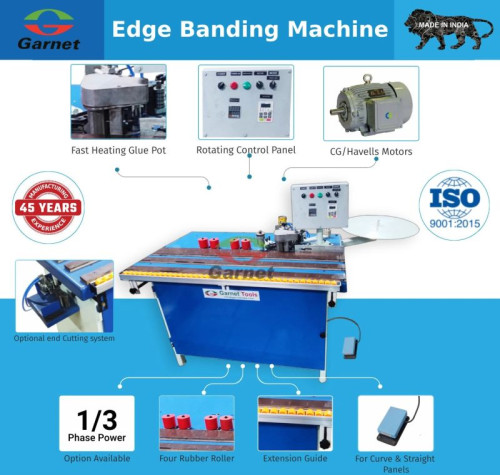

Salient features of the Machine :

  • Easy setting of machine
  • Heaters for glue
  • Auto Cut-off of PVC Strip using Pneumatic pressure Machine tested and trial can be provided before delivery
  • Variable feed drive for feeding speed (Optional)
  • Tilting of the side board also available (Optional)
Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Country of Origin India
Application Metal Material Cutting
Automation Grade Fully Automatic
Power 1-3kw
Driven Type Electric



CNC Router, 8×4 feet, STD-CNC – 1.5/2/3 kw Spindle

Mini CNC Router is used to shape, carve, cut boards, strips, panels and blocks of Wood, WPC, MDF, Plywood, Acrylic or similar material to make shapes, designs, profiles and other usage.
Artists, designers, model creators and 3D art makers regularly use this machine to make various products from toys, furniture, scuptures and many other products.
Imagination is the limit of the machine and the features and the machine can work in 2D and 3D and even more functions as per client requirements.
Machines use a High Speed Spindle that can have power of 1.5/2/3/4.59KW Power as per application
For small startups, toy and smaller product makers this is an ideal machine for wokring.
The CNC Carving Machine requires proper drawing and tool to provide finish as per requirement.

Read More...


Request to Call
