2Head Multi Boring Machine

Link Copied
5.07 Lac / Piece
Business Type Manufacturer, Exporter, Supplier, Retailer
Model GT-MB-2
Overall size 2600*2500*1620mm
Motor Power 1.5 x 2 = 3KW
Click to view more

Product Details

Max. Drilling Depth
55mm
Installation dia. Of drill bit shaft
10mm
Rotational Speed:
2900 RPM
Shipping Size
2600x1080x1620mm
Max. Drilling Diameter
30mm
No. of Boring Heads:
21 nos. x 2 Heads

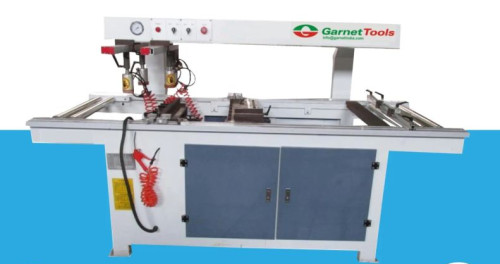

Multi Boring Machine, 2head is used to make holes or drills on the panel for knock down or easy assembly of hardware. This machine can drill one set of horizontal and one set of vertical hole in one time operation.
The types of holes or drills done are hinge hardware hole, Minifix hardware holes and related holes for dowel and related application.
Multi Boring machine, double head with one head can either do vertical or horizontal drills and the secondary head is aligned for vertical axis.
Multibore machine, double head has one rotating head which can turn to horizontal or vertical axis for drilling. Machine uses pnuematic power for holding of the workpiece.
Scales and marking are provided for guiding and setting of panels.
Machine uses multi head drilling facility to drill 21 hole positions and thus its easy to set in place of shifting hole positions.
