Panel Saw Machines

Leading Manufacturers, Exporters, Wholesaler and Retailer of Heavy Duty Panel Saw Machine, Mini Panel Saw Machine, Sliding Table Saw Machine, Table Saw Machine and Panel Saw Machine from Dewas.

3.3 Lac / Set( + 18% GST applicable)
Get Best Price
Business Type Manufacturer, Exporter, Supplier, Retailer
After-Sales Service Provided Yes, Available
Automatic Grade Automatic, Manual, Semi Automatic
Condition New
Certification ISO9001:2015
Style Horizontal
Type Panel Saw
Brand Name Garnet
Color Blue And White
Weight 700-800kg
Country of Origin India
Voltage 220V,440V
Application To Cut Panels
Driven Electric
Powder 6-9kw
Size Can be customised
Product Code GT-PSM
Port Nhava Sheva
Payment Terms L/C, D/A, D/P, T/T
Delivery Time 10-40 days
Packaging Details As per client requirement

Click to view more

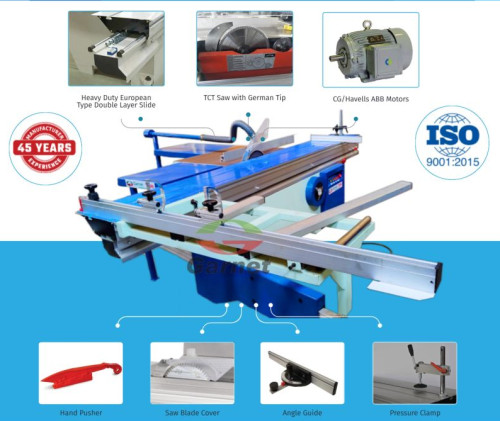

We make industrial panel saw in India

Features of the Machine:

  • European Double layer Heavy Duty Aluminium Slides
  • CG or ABB Motors
  • L&T, Siemens and Schneider Control Panel Parte
  • German Tipped Saws
  • Heavy Duty Machine Body
  • Main Saw 7.5/5HP and Scoring Saw 1.5/1HP
  • Side Guide with 3100mm Opening
  • Dust Collector switch on Machine
  • MCB, Contactor and Electrical Safety for each and every Motor
Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Voltage 220 Volt
Power 2.6/1.6 +1.2kw
Model GT-FTS
Table Size 1550*1050*700mm
Folding Table Weight 65kgs
Gross Weight 80kg
Sliding Stroke 1500mm





Portable but also very accurate foldable double cutter machine to cut various types of boards and panels.



Foldable Sliding Table saw machine makes this machine suitable to cut accurately various types of materials such as plywood, ply, laminated boards, particle boards, MDF, HDHMR and other materials.



Portable Double Cutter Saw machine can be easy assembled and set in small areas for easy movement. Machine is provided with wheels for easy shifting.

Foldable Panel Saw Machine can be attached with router or edge banding system to provide multiple operations and functions to provide a complete modular furniture machine experience. This becomes portable edge banding machine, portable router table and also a Panel saw machine for startups, site use and also small area working.



Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Application For Sheet Cutting Of Wood, Plastic, Hardwood, Bamboo Or Similar Applications
Size Made As Per Customer Requirement
Approx. Price Rs 2 Lakh
Speed (RPM) 4000-6000RPM
Thickness of cutting 1-120mm
Length of sheet cutting 100mm - 2500mm
Clamping manual or pnuematic
Feeding system Manual or pnuematic
Production Capacity 5machines per month
Delivery Time 15-60 days
Packaging Details As per customer requirements

Click to view more

Features

  • Machine uses high precision guides
  • Cost effective system
  • Better clamping system
  • Dust collection system
  • Scorer saw can be added on requirement
  • Tilting system can be added if required
Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Size As per customer requirement
Speed (RPM) 3500-5000
Usage For Sheet cutting of wood, MDF, Particleboard, plastic composites and similar applications
Production Capacity 5 pieces per month
Delivery Time 30-60 days
Packaging Details As per customer requirement

Features

  • Machine uses high precision guides
  • Cost effective system
  • Better clamping system
  • Dust collection system
  • Scorer saw can be added on requirement
  • Tilting system can be added if required
Read More...


Request to Call


3.3 Lac / Piece( + 18% GST applicable)
Get Best Price
Business Type Manufacturer, Exporter, Supplier, Retailer
Brand Name Garnet
Condition New
Automatic Grade Automatic, Semi Automatic
Power 6-9kw
Application Industrial
Certification ISO9001:2015
Voltage 220V, 440V
Type Panel Saw Machine
Weight 500-1200 Kgs.
After-Sales Service Provided Yes, Available
Country of Origin India
Driven Electric
TILTING OF SAW TABLE 90-45 Degree
Size/Dimension Customised
Speed Of Scoring Saw Spindle 3000-8000RPM
Scoring Motor 1-3HP
No Load Speed Standard
Size Customised
Power Consumption 4-10 HP
Cross Cut Fence Read Out Optional
Speed 3000-8000RPM
Operating Software Manual or Electrical
Max Length Of Cut 500-4000mm
Max Saw Blade Diameter 100-600mm
Max Thickness Of Cut 5-150mm
Production Capacity 5 pieces per month
Product Code GT-PSM
Port FOB Indian Port
Payment Terms L/C, D/A, D/P, T/T
Delivery Time 10-75 days
Packaging Details As per customer requirements

Click to view more

Features :

  • Machine uses high precision guides
  • Cast Iron Spindle mounting
  • Adjustable speed of spindle as per usage
  • Accurate side and front guide with scales
  • Cast iron main table with extension supports
  • Cost effective system
  • Better clamping system
  • Dust collection ducts for top and bottom side
  • Scorer saw can be added on requirement
  • Accurate Tilting system with dial or digital angle measurement

Optionals :

  • Dust collection system
  • Length of working - 1200, 2500, 3000, 3200mm
  • Thickness of cutting can be customised
  • Pneumatic Clamping System
  • main table side, spindle size and related can be customised
  • Electrical cutter up-down and tilting system
Read More...
