62,000.00 / Piece
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Type | Cross Cut Machine |
| Material | Bamboo |
| Usage | Cutting Bamboos To Required Length |
| Click to view more | |
Product Details
Maximum Bamboo Diameter
Up To 200 Mm
Saw Type
Carbide Tipped Circular Saw
First Machine In Production Process
Yes
Cutting Method
Single Pass Of The Saw

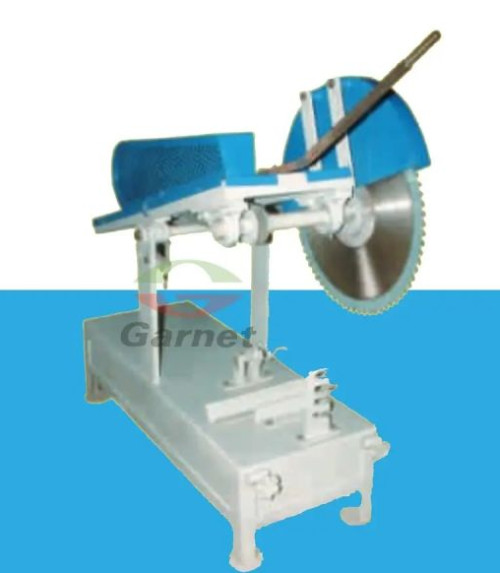

Heavy-Duty Bamboo Cross Cut Machine | Precision & Durability
This heavy duty Bamboo Cross Cut Machine is designed to cut bamboos to required length. It is capable of cutting thickest to thinnest bamboo found in INDIA, i.e. up to 200 mm in diameter. The machine uses carbide tipped circular saw. The cross cut machine is the first machine for any production process using bamboo. The lengths of the sections to which the bamboo is to be cut is decided depending on the length of the final product desired. The cut is made with a single pass of the saw. This ensures a parallel cut, very crucial in further operations.
Specification
| Maximum diameter of Bamboo to be cut | 200 mm (8″) |
| Dimensions of the Machine, in metres | 1.3 X 1.3 X 0.65 |
| Net weight, in kilograms | 150 |
| Maximum diameter of circular saw | 0.6 m (24″) |
| Power consumption | 3.75 KW or 5 HP |
| Labour requirement | Semi-skilled labour |
| Spindle speed, in revolutions per minute | 1800 rpm |
